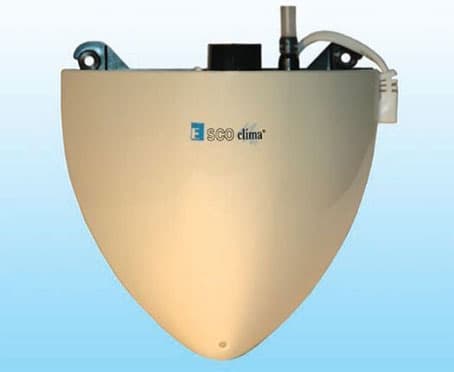

Esco Clima Condensate Pump
Condensate removal pump with full-sized collection tank reservoir. The option is here and so versatile you’d wonder why no one thought of it before! The best solution to annoying and unsightly condensate pumps!
The EscoClima offers
- Freedom from the unsightly ‘Bucket Pump’
- Simple installation & maintenance
- Acceptably low noise level
- Greater than 1.5m vertical lift (max 2m)
- Aesthetic styling - even suitable for homes!
- Total versatility
- No inline filter clogging
Technical Specifications
model |
PUMP-168 |
voltage |
220V 50-60Hz |
power |
10W |
lift |
1.5m vertical x 10m long |
drainage |
30 litres per hour |
reservoir |
200cc |
sound level |
low frequency 36dB |

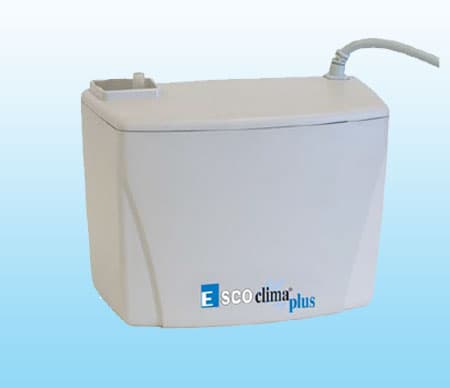

Esco Clima Plus Condensate Pump
Excellent draining capability: Rotor is designed to give sufficient torque for greater ability to expel water and to allow greater height of discharge.
Low sound level: Low-velocity motor means low sound level. A unique (patent-pending) vibration-suction suspension system and high-quality ball bearing on the motor further reduce the operating sound level.
Long lifetime: The ball bearing inductive motor has a long lifetime of 20,000 hours.
No blocked tube: The large rotor radius generates high torque to expel the condensate water easily, thus no more problems with blocked tubes. The unique dual-face rotary design with the extra large inlet hole (∅ 15mm) can expel contaminants aggregated at the bottom of the container easily.
Safety feature: All plastic material used is made of fire retardant ABS material with UL94 V-O standard. The circuit is protected by a thermal fuse to cut out should there be an abnormal temperature rise.
Unique flow switch design (patent-pending): The pump operates with a light detecting flow switch. This solves the problem associated with many other condensate pumps which use a metal rod detector which may become rusty & insensitive after prolonged use.
Technical Specifications
voltage |
220V 50Hz |
power |
23W |
lift |
2.5m vertical |
drainage |
60 litres/h |
reservoir |
550cc |
blockage risk |
never gets blocked |
sound level |
40dB |
motor |
induction motor, oil-impregnated bearing, 300RPM, high torsion, thermal fuse protection |
weight |
1,6Kg |
dimensions |
180x150x105mm |
